THERMAL SPRAY POWDER

All Powder supplied by CS Wear are produced by advanced gas-atomization and water-atomizing process, resulting in chemical uniformity, low oxygen content, and good sphericity, resulting in excellent flow and non-sticking properties. In overlaying or spraying, uninterrupted powder feeding is ensured without stick on torches or block feeding paths. Many powder size specifications are available. The quality level has reached a high level appreciated by both domestic and international customers.

Our main products are Nickel, Cobalt, Iron-based powders, Nickel/Cobalt based powders mixed with Tungsten carbide powders, Continuous cast rod, Cobalt based electrode and Tungsten carbide tube wire, annual supply capacity is around 2000 tons.

The products are widely used in OXY spraying and fusion, HVOF spraying, PTA overlaying, Laser cladding, Induction fusion, TIG welding, PM, MIM, Centrifugal casting, HIP, as well as 3D printing, and they are widely used in many industries, such as new energy machinery, plastic machinery, iron and steel metallurgy, petroleum and petrochemical machinery, mining machinery, glass mold, air valves, valves and so on. Our customers are throughout all over China, Asia, Europe, North America, the Middle East and other international markets.

Our factory is ISO9001 certificated. On the basis of ASME, AWS, and GB, the company's internal control standards have been formulated and continuously improved according to the principle of "Plan-Do-Check-Act". We have the world's most advanced and complete testing equipment such as Thermo Fisher iCAP7000 and PRO, Leco CS 744, Leco ONH836, Spectro MAXx, Olympus portable spectrometer, Olympus metallurgical microscope, laser particle analyzer, PTA welding, laser cladding and other advanced equipment, which can have fast and accurate analysis on raw materials and products, in order to provide a sufficient guarantee for long-term stability on product and high-quality on technical services.

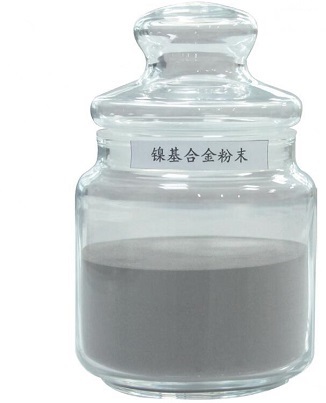

NICKEL BASE POWDER

These powders include Ni-B-Si, Ni-Cr-B-Si, Ni-Cr-B-Si-P, Ni-Cr-B-Si-Cu-Mo, Ni-Cr-B-Si-W, Ni-Cr, and Ni-Cu alloys. They are used for applications demanding corrosion resistance or oxidation resistance. Under 500℃, they have excellent low-stress abrasion and adhesive wear resistance. These powders can be applied by a variety of processes, such as, oxyaccetylene spraying or overlaying, HVOF/HVAF spraying, plasma transferred arc (PTA) overlaying, plasma spraying, laser cladding, induction fusion, centrifugal casting, 3D printing and powder metallurgical processing. Key applications include valve gates, ball valve surface, valve seats, pistons, extrusion screws, barrels, glass molds, steel mill rolls, wire drawing rolls, oil pumping shafts, fan blades, screw conveyors and tungsten carbide tools.

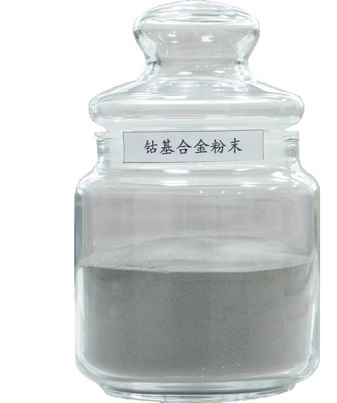

COBALT BASE POWDER

Cobalt base alloys typically contain tungsten and carbon for strengthening. Carbon has low solid solubility in cobalt and therefore, most of it partitions in WC, W2C and M6C or other carbides. These hard phases have a strengthening effect, making such alloys maintain high hardness and strength at temperatures under 800℃. The cobalt-chromium-tungsten-carbon alloys generally have excellent properties to resist high temperature wear, oxidation and thermal fatigue.

Cobalt has a hexagonal-close-packed (hcp) crystal structure at temperatures below 417℃. Intrinsically, it has low coefficient of friction resulting in excellent wear resistance. At temperatures above 417℃, cobalt transforms from hcp to fcc (face-centered-cubic) crystal structure, thereby, generating thermal stresses. Therefore, it is recommended that in weld overlaying and spraying, the parts being coated are pre-heated to 500-600℃ to avoid cracking in the coating or overlay.

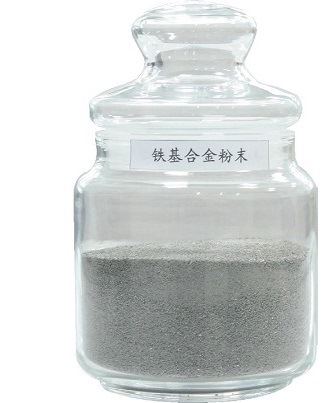

IRON BASE POWDER

Iron base powder are basically iron-carbon alloys with additions of chromium, boron and silicon. They are typically used on mechanical parts for resisting wear and weak acid corrosion under the temperature of 500℃. Even though their properties are not as good as nickel, cobalt base alloys, they are readily available and inexpensive, making them popular in less critical applications.

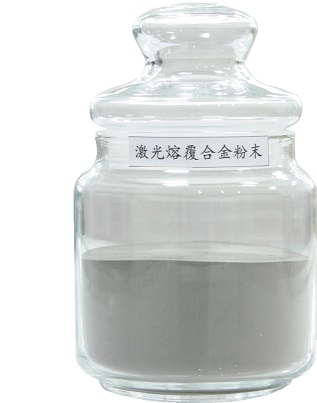

LASER CLADDING ALLOY POWDER

With the significant advancement made in laser technology, laser cladding has gained increasing acceptance. Compared to the traditional overlaying processes, it has the advantage of low distortion, low dilution, near net shape after cladding, and fine microstructure for superior properties. However, because of concentration of heat, it could cause stress cracking. Based on our understanding of the laser cladding process, we had developed a family of powders especially for laser cladding, Our customers have endorsed them unanimously

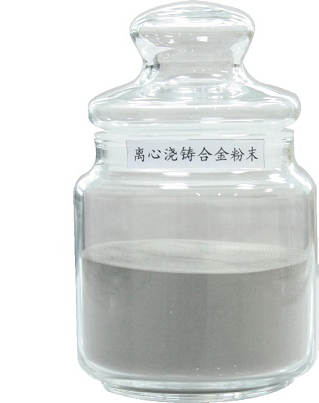

CENTRIFUGAL CASTING ALLOY POWDER

Due to the development of fiber-reinforced plastics, inorganic fillers are increasingly used in making halogen-free plastics. Making such plastics demands superior properties to resist wear and corrosion on the extruder components, especially, extrusion screws and barrels. As a result, bi-metallic barrels are increasingly used. To satisfy both the demanding requirements on the properties of the interior barrel surface and the centrifugal casting process, our company has developed a series of powders to meet the challenge. These powders are iron, nickel, cobalt base alloys as well as Ni+WC. We are the only domestic supplier of gas-atomized powders for centrifugal casting. Their low melting points, low oxygen and impurities result in porosity-free, fine-grained structures with superior wear and corrosion resistance.

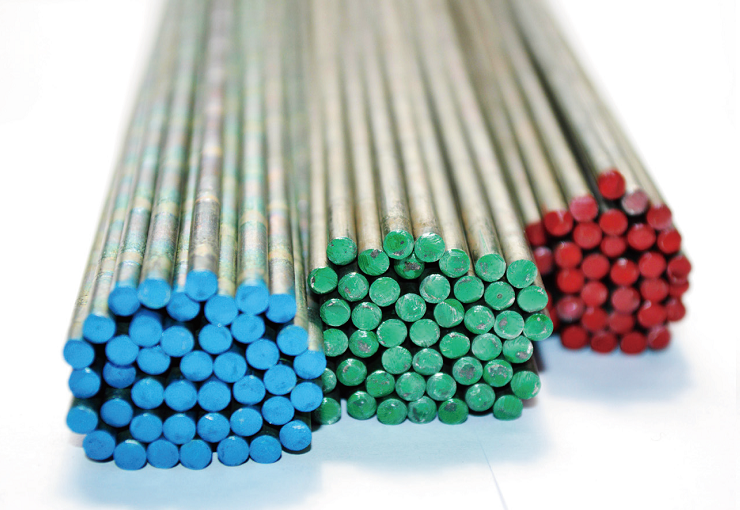

CONTINUOUS CAST ROD

The company uses an advanced technology to produce continuous cast rods of cobalt and nickel base alloys. The sizes include 2.7, 3.2, 4.0, 4.8 and 8.0 mm. These alloy rods have not only chemical uniformity but also low impurities. Their weld puddles have good flow-ability desired by a variety of weld overlaying processes to make high quality and low porosity overlays. The alloy rods have smooth surface and uniform diameter for easy feeding. The length can be supplied as requested. The rods are especially suitable for oxyaccetylene and Tungsten inert gas (TIG or GTAW) welding.

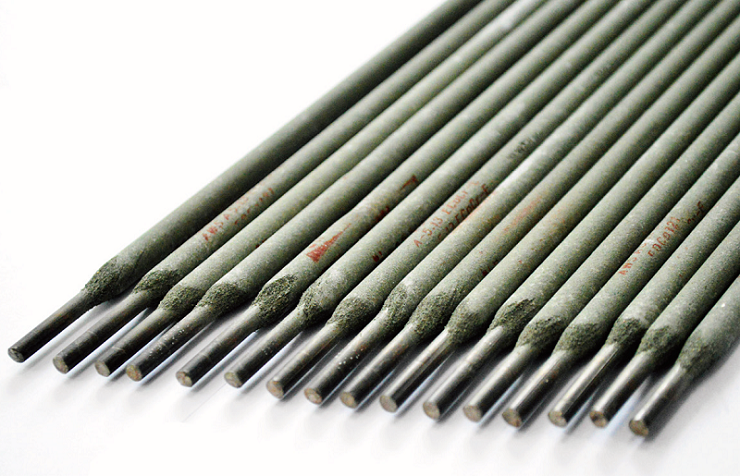

ELECTRODE

With strong technical strength, various testing equipment and perfect quality assurance system, our company is a supplier of various wear-resistant welding rods and special welding rod. The electrodes provided to the customers have the characteristics of low eccentricity, good coating strength, less spatter and beautiful weld formation. We can supply a full range of cobalt based alloy welding electrodes and provide customers with varieties of surfacing process solutions.

Specifications: Φ2.5mm-Φ5.0mm

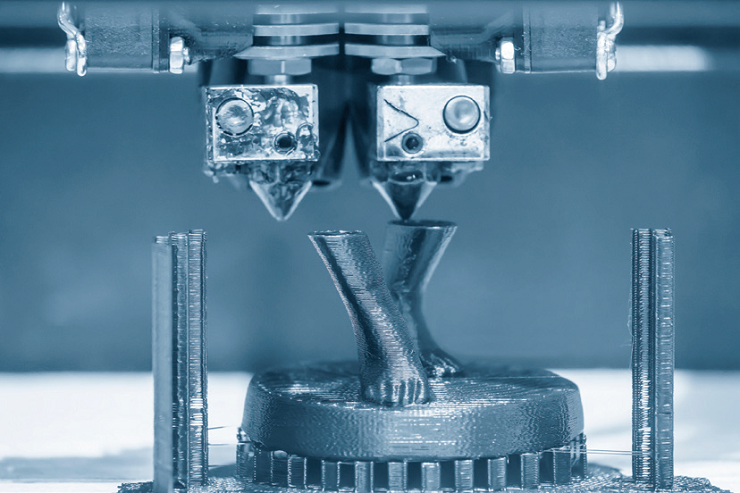

3D PRINTING POWDER

With the development of technology, 3D printing is gradually popularized and applied in various industries. 3D printing can achieve high accuracy and high complexity, which cannot manufactured by the traditional methods. Our company has developed a series of 3D printing powders according to customers’ requirements
